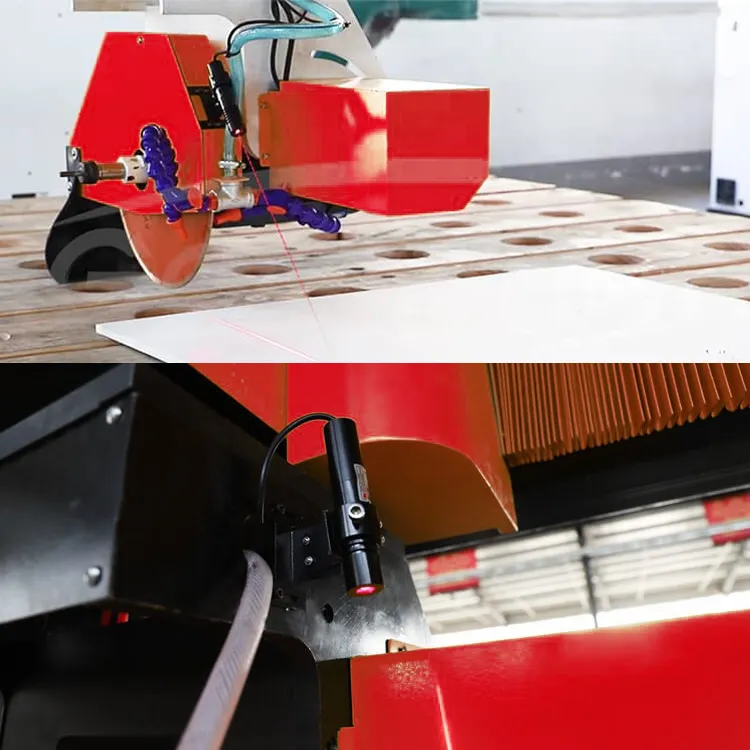

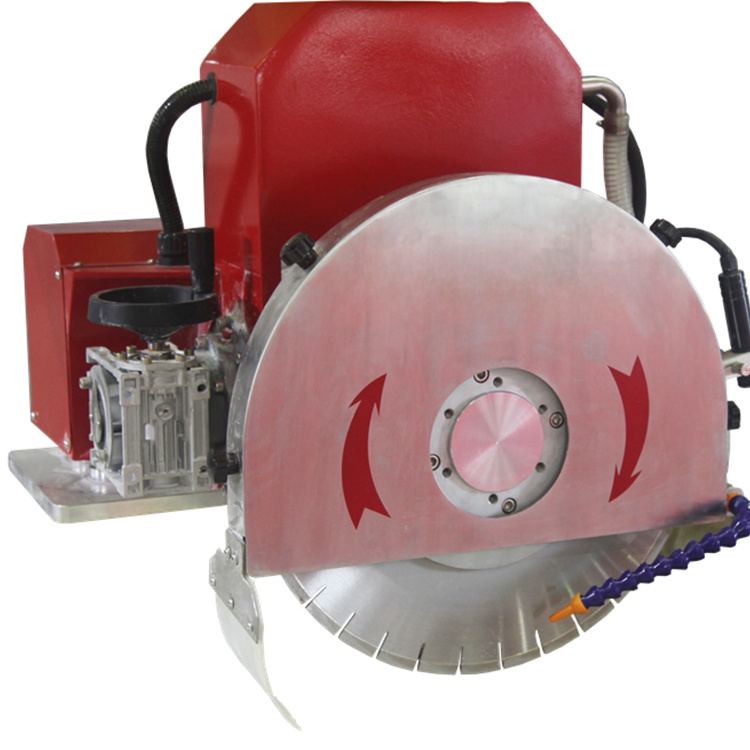

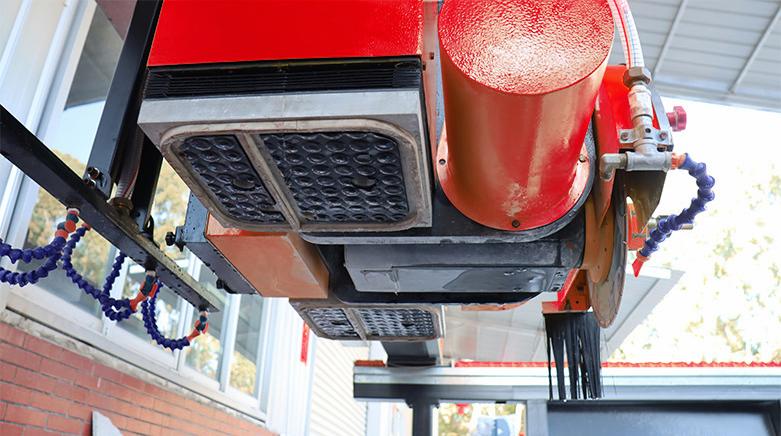

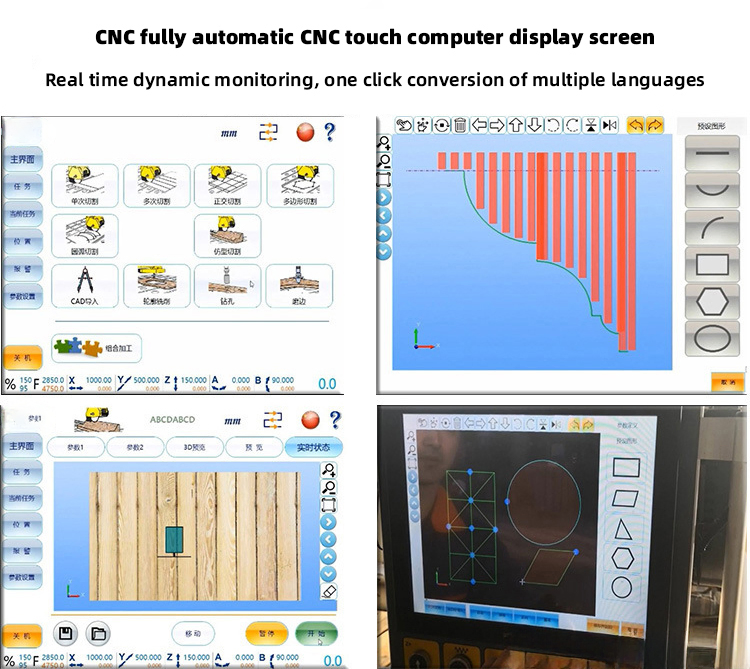

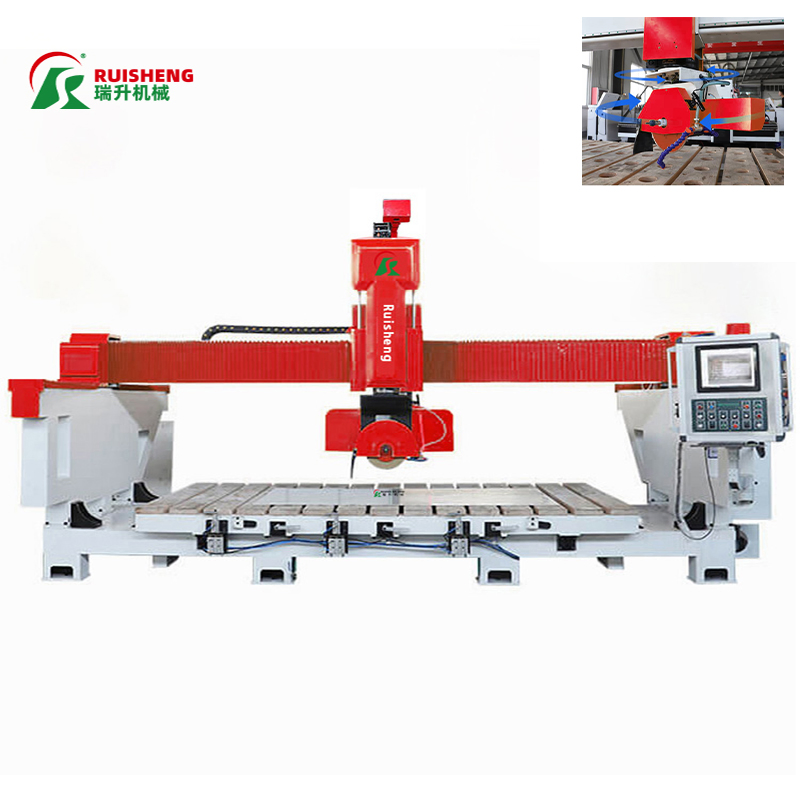

The 5 Axis CNC Bridge Saw Machine utilizes an advanced Italian CNC control system for high-quality, precise, and efficient fabrication of stone, granite, marble, and engineered stone materials.

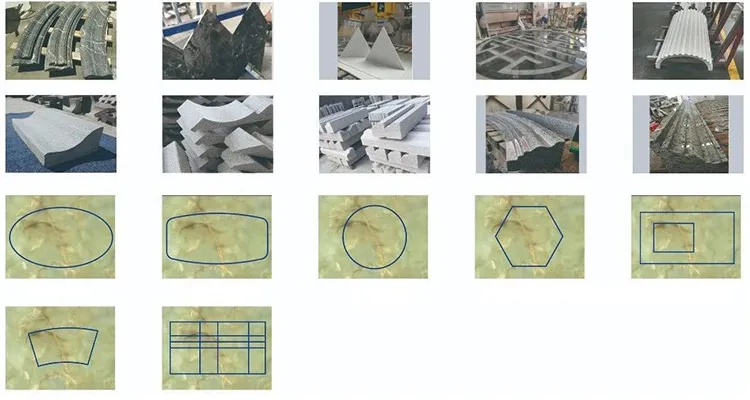

With its extreme versatility, this 5-axis milling machine handles straight cutting, mitering, hole drilling, sink cutting, profiling, round/arc cutting, and complex L-shape cutting with ease.
| Specifications | RS-CNC450 | RS-CNC 600 | RS-CNC700 |
|---|---|---|---|
| Max Disc Diameter (mm) | 350-450 | 400-600 | 450-700 |
| Vertical Z Stroke (mm) | 300 | 500 | 500 |
| Main Motor Rotation | +360° | +360° | +360° |
| Main Motor Tilting | 0~90° | 0~90° | 0~90° |
| Rotation Speed (r/min) | 0-6000 | 0-6000 | 0-6000 |
| Main Motor Power (kW) | 15 | 18.5 | 22 |
| Table Dimensions (mm) | 3200x2000 | 3200x2000 | 3200x2000 |
| Workbench Fliping Angle | 85° | 85° | 85° |
| Total Power (kW) | 27 | 31 | 34 |
| Gross Weight (kg) | 5500 | 5700 | 6200 |
